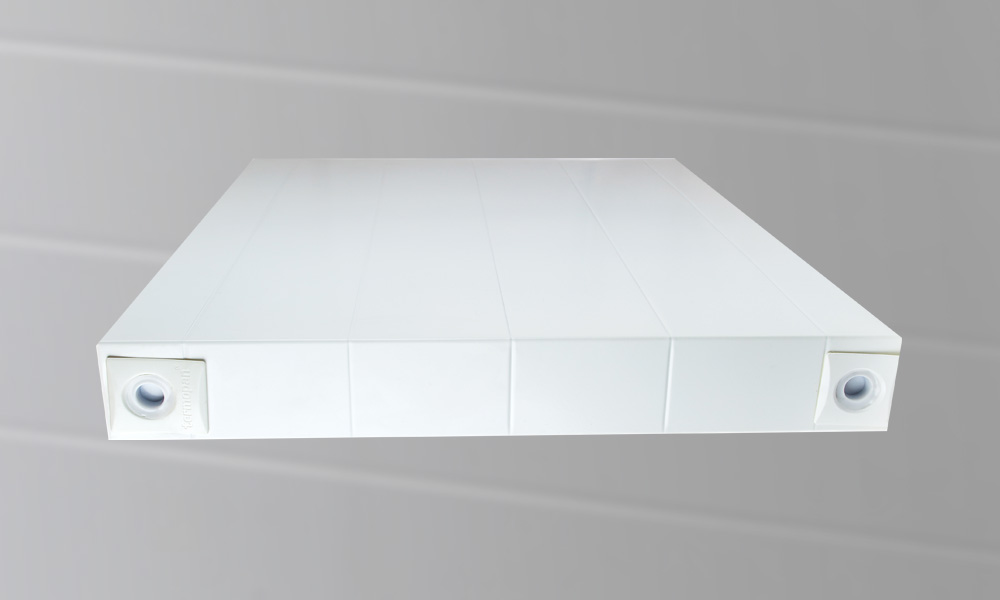

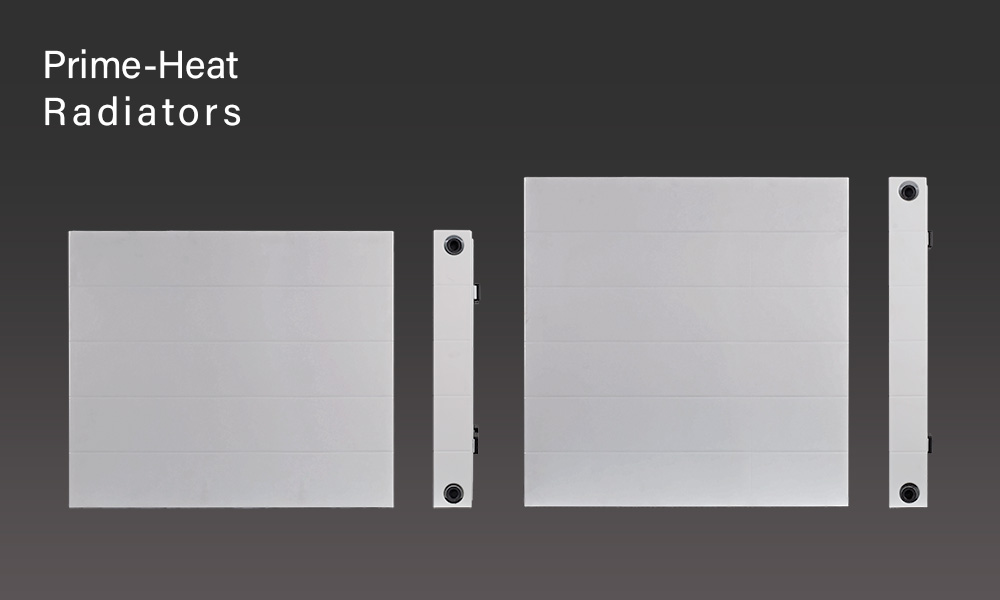

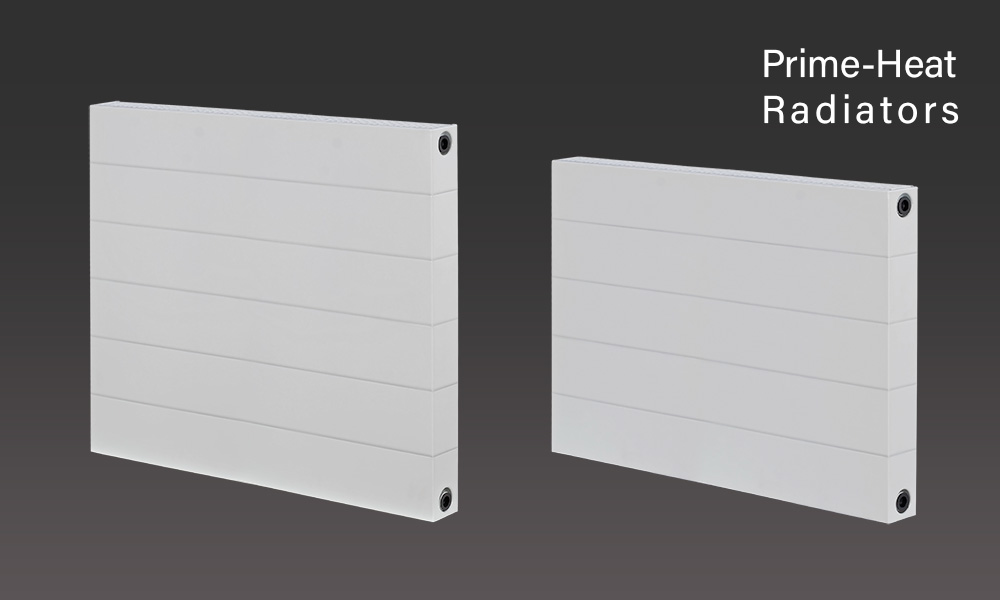

PRIME HEAT CONVECTOR RADIATORS
IDEAL WITH HEAT PUMPS
- Modern contemporary design
- 1mm designer cover fitted
- Single and double Prime Heat Range
- Available in 500mm and 600mm high and up to 2000mm in length
- 1/2” TBOE connections as standard
- Made and tested in accordance with BS EN 442
- Durable powder coat RAL 9016 finish
- 10 Year conditional warranty
- All radiators tested to 13 bar which exceeds operating pressure of 10 bar
- All radiators are double wrapped to ensure maximum protection.
- Low water content combined with maximum efficient.
Prime-Heat Panel Convectors: Size and Output Specifications
| Single | Double | ||||||||
|---|---|---|---|---|---|---|---|---|---|
 | Height | 500mm | 600mm | 500mm | 600mm | ||||
| inches | 20" | 24" | 20" | 24" | |||||
| Length | Length | OUTPUT | OUTPUT | OUTPUT | OUTPUT | ||||
| mm | inches | Watts | BTU | Watts | BTU | Watts | BTU | Watts | BTU |
| 400 | 16" | 437 | 1491 | 507 | 1731 | 831 | 2836 | 959 | 3271 |
| 500 | 20" | 547 | 1865 | 634 | 2164 | 1039 | 3545 | 1198 | 4089 |
| 600 | 24" | 655 | 2236 | 761 | 2596 | 1247 | 4254 | 1438 | 4907 |
| 700 | 28" | 765 | 2609 | 888 | 3029 | 1455 | 4963 | 1678 | 5724 |
| 800 | 32" | 874 | 2981 | 1015 | 3462 | 1662 | 5672 | 1918 | 6543 |
| 900 | 36" | 983 | 3354 | 1142 | 3895 | 1870 | 6381 | 2157 | 7360 |
| 1000 | 39" | 1092 | 3727 | 1268 | 4327 | 2078 | 7090 | 2397 | 8178 |
| 1100 | 43" | 1202 | 4100 | 1395 | 4760 | 2286 | 7799 | 2637 | 8996 |
| 1200 | 47" | 1311 | 4473 | 1522 | 5193 | 2495 | 8513 | 2876 | 9814 |
| 1400 | 55" | 1529 | 5217 | 1776 | 6059 | 2909 | 9925 | 3356 | 11450 |
| 1600 | 63" | 1748 | 5963 | 2029 | 6923 | 3324 | 11343 | 3835 | 13086 |
| 1800 | 70" | 1966 | 6709 | 2283 | 7789 | 3740 | 12761 | 4314 | 14721 |
| 2000 | 79" | 2185 | 7454 | 2537 | 8655 | 4156 | 14180 | 4794 | 16356 |
| Heat Outputs are based on a Delta T of 62. | |||||||||
Product specification
Other products

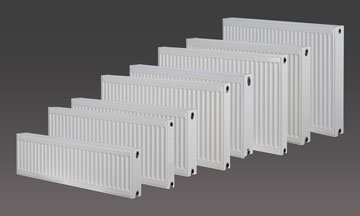

Extensive steel panel radiator range in various heights and lengths to suit any heating requirement.

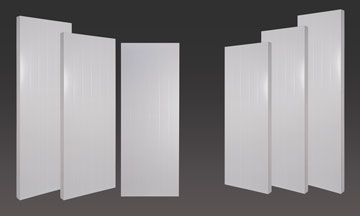

With a design finish and high heat outputs the perfect product to increase the heat while maximising room space.

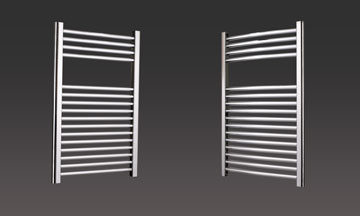

Elegant and functional rails for the perfect bathroom finish. Available in various widths and heights with high heat outputs.
